Vertical Grinding Machine with Rotary Table

Vertical Grinding Machine with Rotary Table RV - RVL Series

The compact and robust vertical head and rotary table grinding machines of the RV and RVL series are the Meccaniche Lodi product intended for the flat grinding operation sector. Top quality components, brushless motorized axles, carriage running on linear roller guides, movements with ball screws, hydrostatic guides (optional) for rotating tables and high structural rigidity, allow to obtain great removal capability, excellent precision and reliability over time. The operation of this series of vertical head grinding machines is ensured by a CN/CNC LODI or SIEMENS.

Optional Accessories

• Flat/conical diamond (RV - RVL)

• Diamond cutter fixed on base (RVL)

• Grinding wheel flange diamond-cut

• Flange for cup wheel

• Sector wheel with special abrasive pad

• Aspirator for humid smoke

• Dry vacuum cleaner

• Filter fabric purifier

• Magnetic purifier

• Z-axis optical scale

• Hydrostatic support table

• Rectified height increased +100mm

RV - RVL Series grinding performances

	Description	Unit	RV 600 CN	RVL 600 CN	RV 800 CN	RVL 800 CN
Strokes	Vertical Z - axis (servo motor)	mm	320	320	320	320
	Cross X - axis (servo motor)	mm	None	630	None	630
	Min. input axis increment	mm	0,001	0,001	0,001	0,001
	Max. height ground	mm	300	300	300	300
Table	Table dimension	mm	ø 600	ø 600	ø 800	ø 800
	Table Load	Kg	200	200	200	200
	Table Speed (stepless regulation)	Rpm	1 ÷ 30	1 ÷ 30	1 ÷ 30	1 ÷ 30
Spindle	Power	kW	6 (opt. 9)	6 (opt. 9)	9	9
	Speed (stepless regulation)	Rpm	800 ÷ 1600	800 ÷ 1600	800 ÷ 1600	800 ÷ 1600
Grinding Wheel	Size	mm	ø 325	ø 325	ø 450	ø 450
	Abrasive Sector	mm	60/54/22 - 110	60/54/22 - 110	60/54/22 - 110	60/54/22 - 110

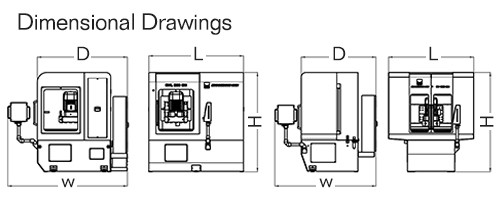

Space requirement	L	mm	1800	2000	2000	2000
	D	mm	1600	1700	1850	1900
	W	mm	2100	2300	2350	2500
	H	mm	2100	2100	2100	2100
	Weight	Kg	2200	3000	2600	3600
